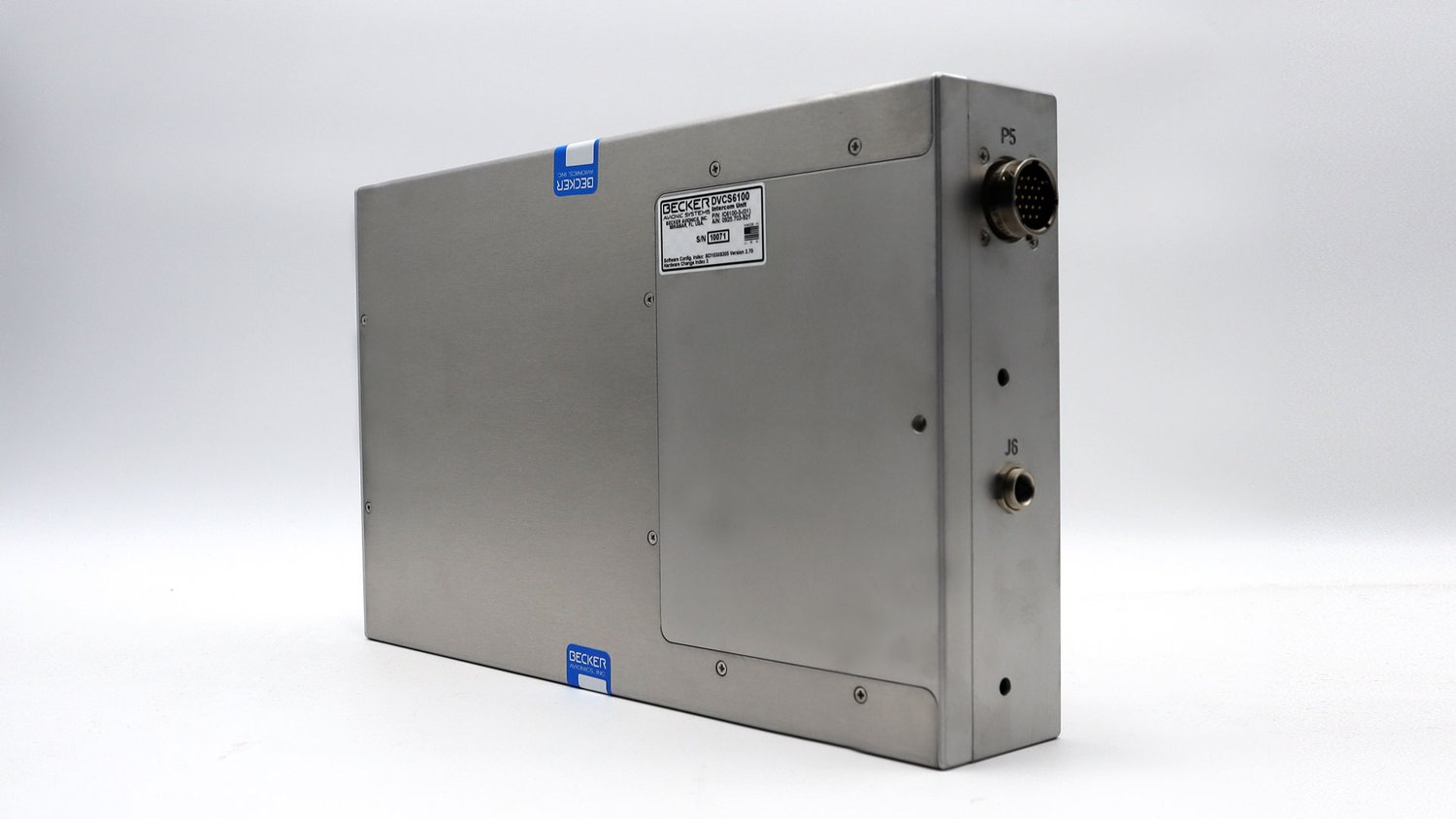

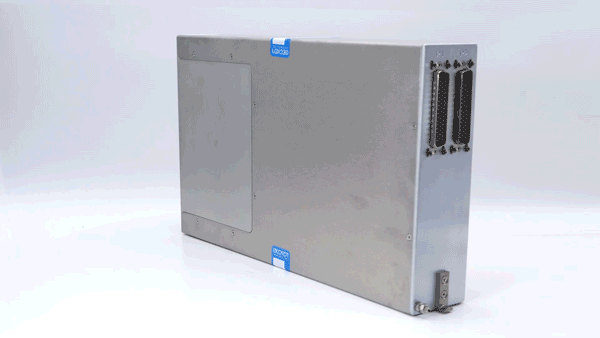

IC6100 Intercom Amplifier

DVCS6100 Product Family

The IC6100, IC Amplifier Unit, is part of the Digital Voice Communication System DVCS6100 and is provided for installation in both fixed-wing and helicopters.

Together with the ACU610X Audio Control Units and the REU6100 Remote Electronic Unit, the IC6100 complements the aircraft's intercom system when more operator positions are needed. This amplifier is ideal for both commercial and military applications. Its rugged design and intuitive controls make it a dependable choice for enhancing in-cabin communications.

Other DVCS6100 Components

  • Supports multiple audio channels for versatile communication.

    High-fidelity audio output for clear communication.

    Six balanced SW configurable audio fixed inputs.

    Amplification of summed audio signal to 250 mW into 300 Ω or 500 mW into 8 Ω.

    Eight alert tone activation inputs (active low).

  • Power supply: 27.5 V DC nominal 18.0 V DC emergency

    Frequency response: 300 Hz … 6 kHz (0/–3 dB)

    Output power: 250 mW (8.66 V) into 300 Ω or 500 mW into 8 Ω

    Dimensions: 379mm x 195mm x 57mm

    Weight: ≤ 3 kg

  • DO-214A audio system guidelines

    DO-160G environmental conditions and test procedures

    MIL-STD-461F EMI/EMC compliance

    FAA TSO compliance

Interested in this product?

For more information regarding this product and purchasing options, please contact the Becker Avionics, Inc sales team.
